Brodit ProClip - 852627

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the Proclip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Center mount Attention! Read all instructions before attaching the ProClip

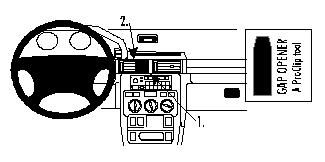

1. Press the thin end of the enclosed gap opener into the gap between the dashboard and the air vent frame to widen the gap. Clean the surface above and below the air vent with the enclosed alcohol pad.

2. Peel off the cover of the adhesive tape on the ProClip. Press the lower part of the ProClip into the gap between the air vent frame and the console ledge. Press it all the way in until it stops.

3. Press forward on the upper part of the ProClip so the angled edge snaps over the air vent frame and into the gap next to the gap opener. To make sure the angled edge is all the way in, press down on top of the ProClip. Pull out the gap opener.

4.The ProClip is in place.
